OPS PC
ValueSTek OPS Overview
An OPS PC (Open Pluggable Specification PC) is a compact, modular computer that slots directly into a compatible ValueSTek interactive flat panel, turning it into a powerful, cable-free, all-in-one system for smart classrooms and conferencing. Its powerful graphics chipset supports up to 4K UHD 60Hz video output and further flexibility through USB interface. It is compatible with Microsoft Windows 10/ 11 and comes pre-installed with ValueSTek’s most important applications. Say goodbye to tangled cables, say goodbye to bulky additional peripherals, and say goodbye to ugly and annoying power issues. With OPS PC, ValueSTek ValueHub make it easy to create the best visual effects without unnecessary technical and management burdens.
Work more simply and seamlessly
Integrated OPS PC with Windows
into your interactive flat panel
More selections more possibilities
The perfect slot of plug-and-play OPS PC to take your interactive 4K imagery to life in both classrooms and businesses alike. Two ValueSTek’s OPS meet different standards of interactive displays, brings an immersive experience to your whiteboard enabled lesson, and large-format display meetings and digital signage applications. It’s a perfect solution for any interactive touch panel with an OPS slot built-in. It can also be embedded into digital advertising display, store catalog display, digital information kiosks, etc. to provide a hassie-free Windows 10 Pro or Windows 11 solution.
Optional Intel CPU
ValueSTek supplies a wide range of Intel OPS Slot-in PCs fully configured with your choice of processor, memory, storage, peripheral cards and operating system. Solutions provide ease of use combined with cost savings; media player integration means no cables or external power supply are needed. Low power consumption translates into low electricity bills for systems deployed with OPS PC, reducing operational cost.

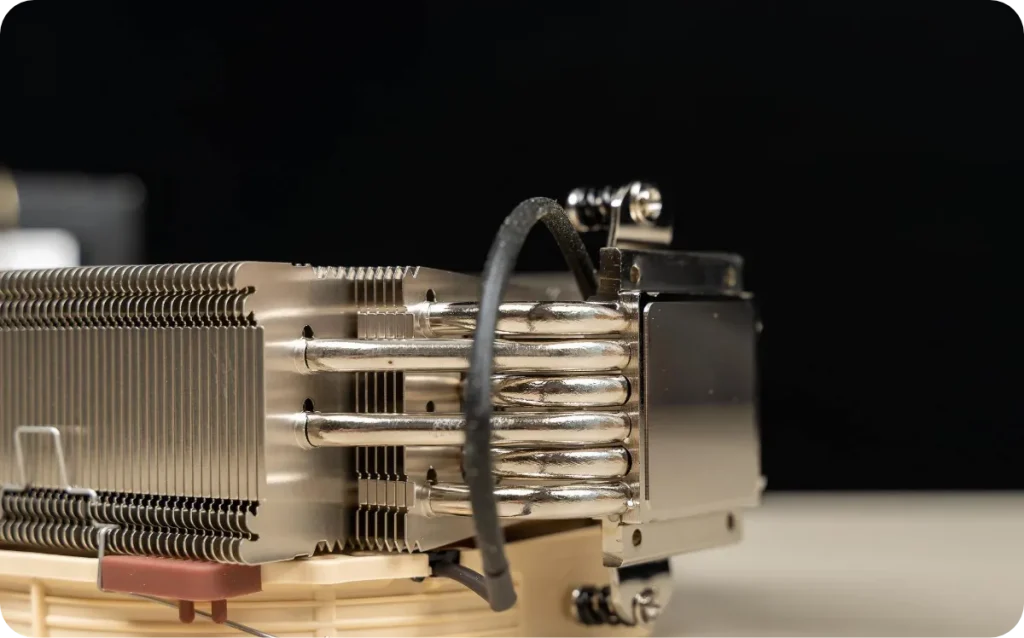

Efficient and silent cooling system
It runs quietly and reliably thanks to its high quality solid state design. Increases reliability and reduces moving parts, even in the smallest of systems.

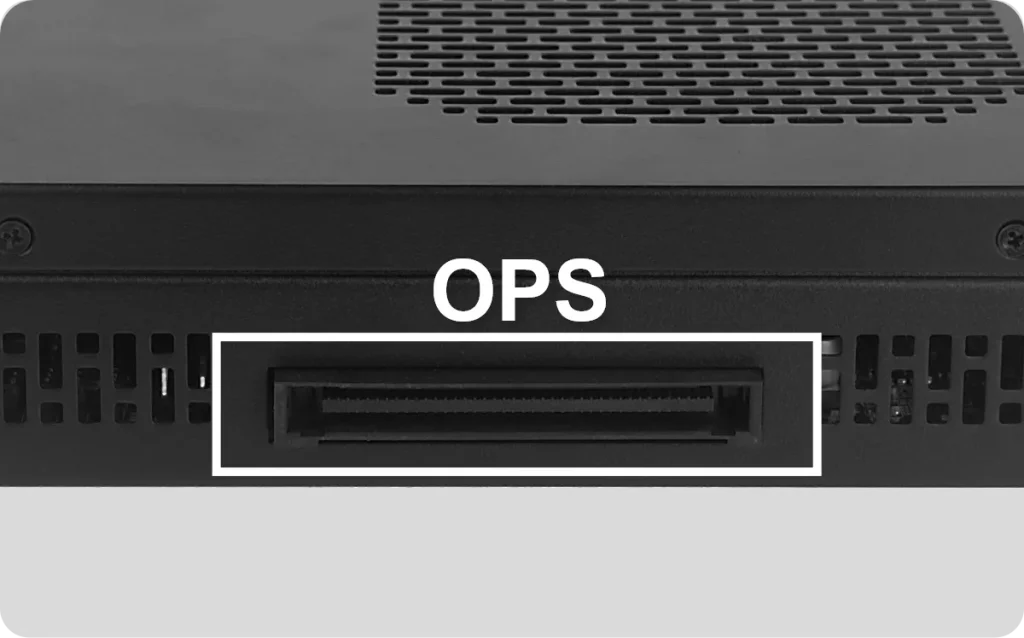

Standard interface
It can be interconnected with any device that supports the OPS protocol. Regardless of how you choose to connect the display to your content source, our product will provide the necessary support.
Specifications
H110/H610
Main chipset
Intel 14 th
CPU
32GB
RAM
4K /60HZ
OPS resolution
2.4G&5G
WiFi
USB*6
USB
8K/60Hz
DP resolution
Bluetooth
Bluetooth
30mm/42mm
Two thickness specifications
Recommended products
Learn more
How to choose an OPS PC?
1. Overview
The specification was developed jointly by Intel, NEC, Microsoft, and other companies with the aim of providing a unified standard for the digital display industry. An OPS PC module integrates a complete x86 architecture mini-computer, including a processor (typically an Intel Core series), memory, storage (SSD), and various input/output interfaces, and can run operating systems such as Windows or Linux.
1.1 Key Features and Advantages
Modular Design:
It adopts standardized physical dimensions and an 80-pin connector interface, allowing it to be easily plugged into a dedicated slot behind compatible display devices.
Plug and Play:
This design eliminates the need for additional video cables and power cords, simplifying the installation process and instantly turning large displays into integrated computers.
Easy Maintenance and Upgrades:
Thanks to its pull-out design, users or technicians can conveniently dismantle, replace, or upgrade the computer module without removing the entire display device from its installation location, thus reducing maintenance costs and downtime.
Standardization and Compatibility:
Following a unified industry standard, OPS modules and displays from different manufacturers are compatible, providing users with greater flexibility and choice.
Space-saving:
The highly integrated design miniaturizes the traditional computer host, saving physical space and making the deployment environment tidier and more aesthetically pleasing.
1.2 Application Scenarios
OPS PC is widely used in commercial and educational settings that require integrated computing power.
Education and Training:
When combined with interactive flat panel, interactive whiteboards or smart blackboards, enable multimedia teaching and remote interaction functions.
Corporate Meetings:
Used in smart meeting systems, supporting high-definition video conferencing, wireless screen mirroring, and document sharing.
Digital Signage and Advertising Displays:
In public places such as shopping malls, airports, and hotels, OPS PCs drive digital billboards and kiosks, making content updates and management easier.
Medical Information Display:
Used in medical institutions to display patient information, health guidelines, and more.
2. Features of ValueSTek OPS PC
Support for 4K Resolution:
Resolution refers to the number of pixels on a screen, typically expressed as the number of horizontal pixels multiplied by the number of vertical pixels. The higher the resolution, the clearer the image and the better the detail. The ValueSTek OPS PC supports 4K resolution with a 60Hz refresh rate, providing smoother touch writing with less delay on IFPS.
High Performance:
Performance is a key factor affecting speed and responsiveness. The processor, memory, and storage capacity are all important considerations. A high-performance OPS PC can better handle multitasking and complex applications. The processor is a core component of the tablet, and its speed and performance directly impact the overall system’s speed and responsiveness. Key metrics for processors include model, core count, clock speed, and cache capacity. ValueSTek offers various CPU and memory configurations. Notably, CPUs are available in different versions, such as the laptop version—focused on balancing power consumption and performance—and the desktop version—focused on performance with more cores and higher speeds. The standard configuration for ValueSTek is the desktop version.
Operating System:
The operating system is one of the core components of an OPS PC. Choosing an easy-to-use, powerful operating system with strong support is essential. ValueSTek ships with the Windows 11 operating system and commonly used office software (e.g., WPS) and professional whiteboard software for education, making the system ready for use upon startup.
Connectivity:
The connectivity performance of the OPS PC is an important factor in its expandability and versatility. Choosing an OPS PC with a variety of connectivity options makes it easier for users to connect to other devices and networks. ValueSTek supports WIFI (2.4G/5G), Bluetooth, USB 3.0, USB-C, and RJ-45 wired network connections, among other ways to connect to other devices.
