4K
4K UHD Sensor
160 x
16x Optical Zoom / 10x Digital Zoom
MIC
Built-in Microphone
Flexible
Arbitrary Variable Section Pillar
VT-DC160 Education Document Camera
Bring Life To Your Lessons
An easy way to connect digital learning to the physical world in high definition, engaging youngsters and increasing acquisition and understanding across all subject areas.
Better Engaged And Fancinating

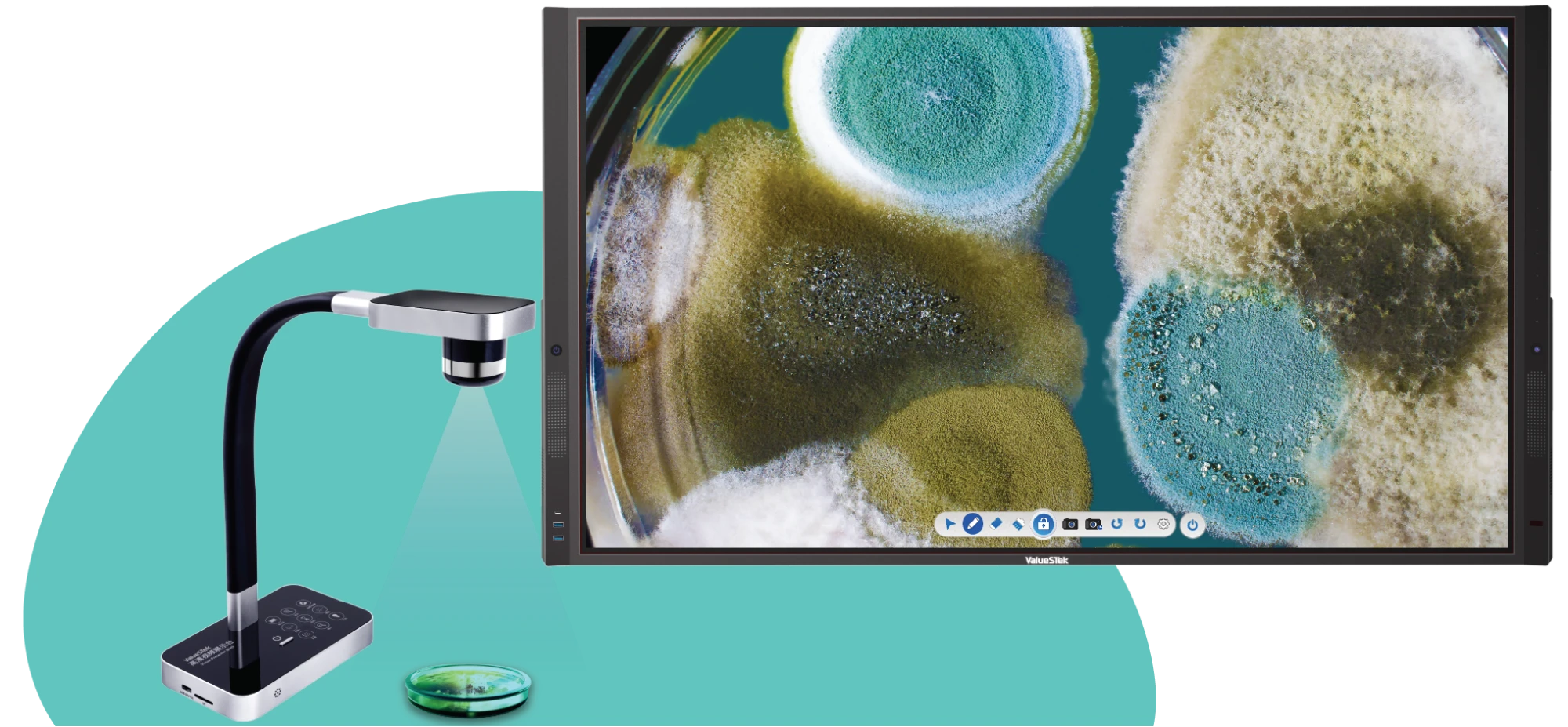

The VT-DC160F Document Camera engages students like never before. It can capture creative lessons and share to every student easily, whether they’re in the classroom or remote and no matter the grade level. It helps them discover and close up sciences, art, chemistry, and more through the eye of the 8MP camera.
Make Extraordinary Lessons And Improve Student Understanding
Make extraordinary lessons with VT-DC160F classroom Document Camera. The output 1080p resolution for clarity will capture students’ attention as you write and draw, which will increase student access and understanding.

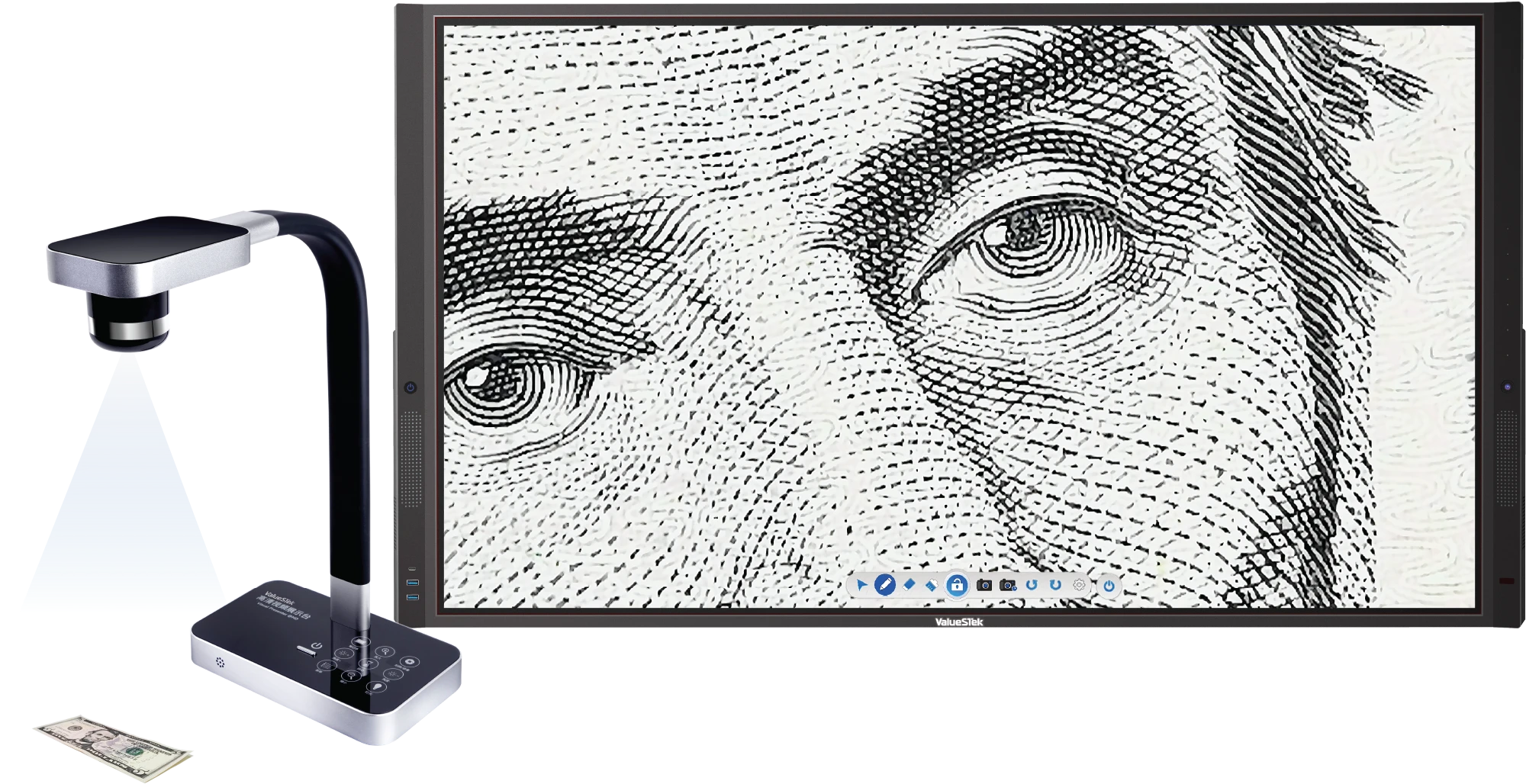

160X Super Zoom For Clearer Details
VT-DC160F with 16X optical zoom, auto focus function, content enlargement without blurring.
Support 10X digital zoom, optical and digital zoom can be used at the same time, up to 160X super zoom capacity.
Catch Image Easily With 180-Degree Rotatable Lens
VT-DC160F is equipped with a 180-degree rotatable lens, which can easily adjust the angle of the output screen, and it can be shot upright no matter how the object is placed. To flexibly adjust the gooseneck and 16X optical zoom, the document camera can shoot different sizes of objects even up to A3-paper size.

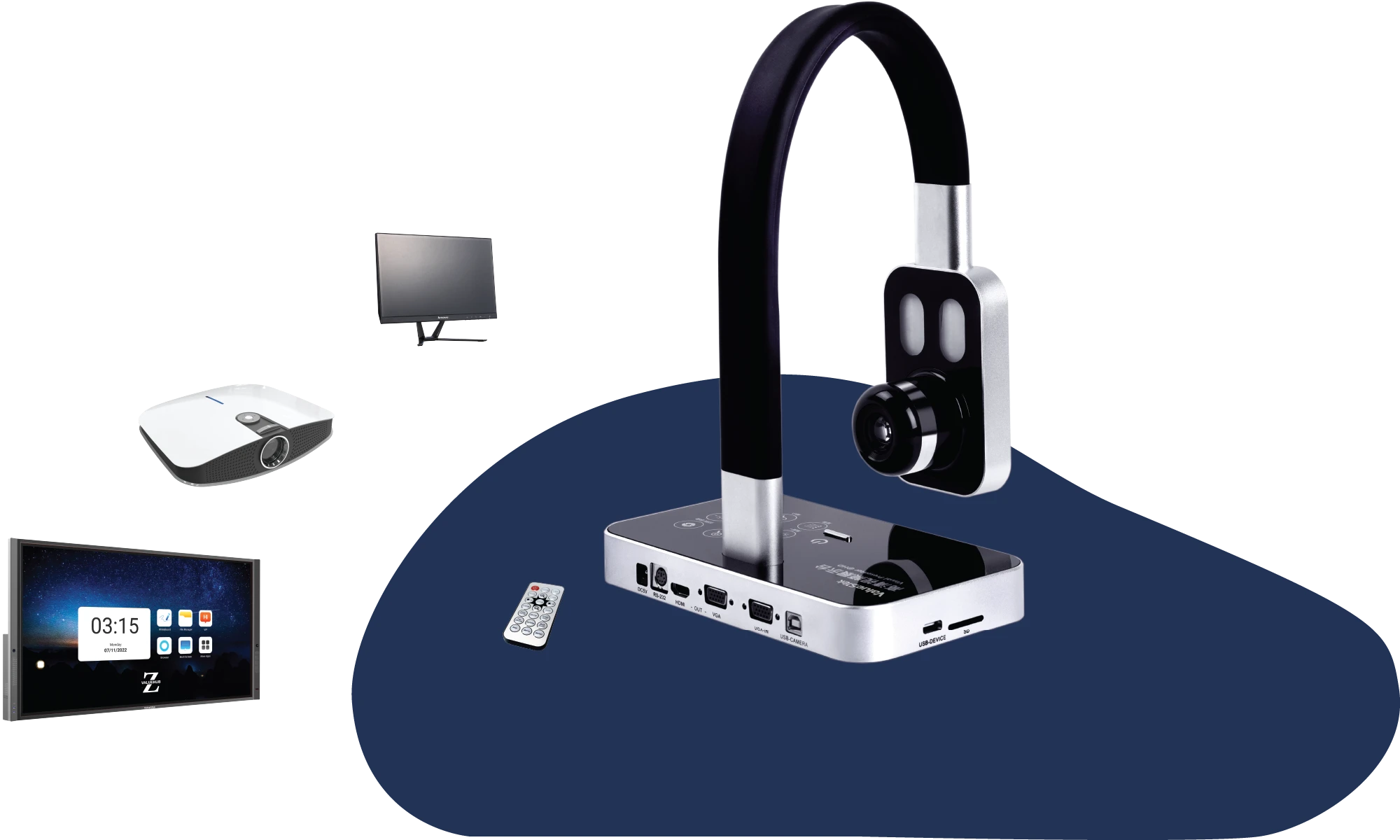

Enjoy Expanded Compatibility With Various Display Devices
Plug & play through USB, VGA, HDMI interface for 1920*1080@ 30fsp resolution to connect with other devices like interactive flat panel, projector, TV to work easily in any classroom configuration.
Plus, the document camera can present the best performance working with ValueHub IFP and ValueBoard software.
Visualizer Specifications
Application Scenarios
ValueSTek’s products and solutions can be used for various environments such as Smart Education, Business Meeting, Intelligent Retail, Media Advertising, Smart Governmental Services and other industries.
Transform how you do business
Create flexible, dynamic workspaces that let team members contribute from any location or device – leading to faster results.
Center of every learning environment
Create dynamic interactive environments for classroom that engage students and empower teachers.
Recommended Products
ValueSTek related products are recommended for better experience.
|
4K/16x Optical Zoom/ Education Document Camera/Visualizer |
|
| Image |
|
| MODEL | VT-DC160F |
| Sensor pixels | 8M (4K) |
| Frame rate | 30 FPS (30 images/second) |
| Zoom | 16X optical zoom * 10X digital zoom, total 160X zoom |
| Focus | Automatic/Manual |
| Shooting area | Up to A3-paper size |
| Electronic image rotation | From 0 to 180 degrees |
| Lens rotaion | From-90 to +90 degrees |
| Resistant arm | Gooseneck,flexible,handy and resistant arm at least 43 cm |
| Output format | Photo: 3840×2160/ Video:1080P@30fps |
| HDMI / VGA output | XGA,SXGA,720P,1080P |
| USB output | 2592×1944@15fps/1920×1080@30fps |
| Image adjustment | Brightness,red, blue,etc. |
| Image stunts | Negative film, freezes,mnirrors,noise reduction, black and white color, etc. |
| LED lighting | 1W LED lamp |
| Standby direct connection | VGA input*1 /VGA output*1/HDMI output*1/ USB TYPEB port*1 / MIC Input*1 |
| Control | Keypad/Remote control |
| Power supply / Power consumption | DC 5V / Standby <0.5W, Work<20W |
| Package Information | Base size: 145mm*130mm/Weight: 2.5Kg/5.5pound (Net weight) |
| Certification | CE/FCC |
Professional and Perfect Service from ValueTek
How to produce high quality interactive display in ValueTek factory? Click here!
The warranty does not cover:
1. Mechanical or electric damages resulting from incorrect installation, configuration, usage.
2. Damages resulting from activities inconsistent with the operation manual or contradictory to technical specifications attached to the device.
3. Damages due to the user’s fault or lack of knowledge.
FAQ
Q: Are you factory or trading company?
A: We are a OEM/ODM factory. ValueTek is one of the biggest manufacturers of intelligent display
Q: Can I get some samples?
A: Sample order is welcome. Price would be negotiated based on bigger quantity.
Q: Is it possible to have my logo on the products?
A: Yes. Please send your logo files to us first. Then we will offer you a solution. But we have MOQ for logo customized, MOQ depends on different products.
Q:What payment methods do your company accept?
A: We accept most of the payment methods, but mainly accept T/T, Western Union.
Q: Can you help me to customize my own products?
A: Sure. We have strong ability to customize your products. Please send us the details requirements, then our team will provide you a suitable solution soon.
Q: What is the warranty for your products?
A: Our standard warranty is 1 year. But customers can choose to extend warranty to 2 years or 3 years.
Q: What brand of screen are you using?
A: We are using A+ level full new original LCD panel from Samsung, LG, AUO and BOE.
Q: When will you make the delivery?
A: We can make the delivery within 5-25 working days according to different models and quantities of your order.
Q: What is your after-sale service?
A: Within the warranty, if it is the problem of products quality, non-artificial damage, we will ship new parts to customers for replacement of the broken parts, or customers ship the products back to our factory for repairing.
Q: I bought this LCD display, how to use and install it?
A: The products instructions and user’s manual can be sent to you when you receive the goods. and the video of installing also can help you to know it better. If you have other question, our engineers also can provide you great support online.
